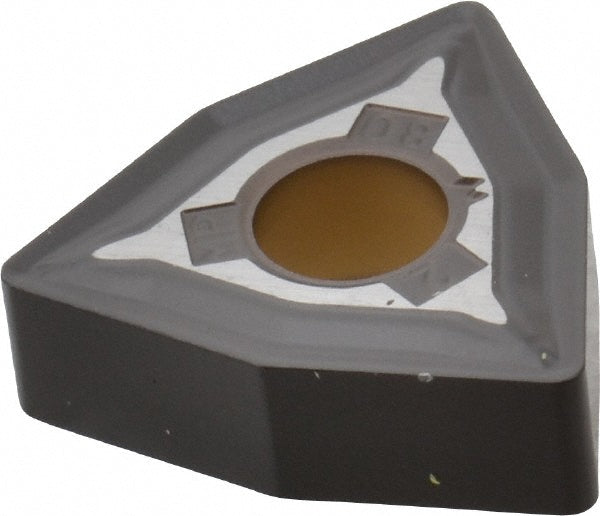

Trigon 1/2" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3761000

MFR# 3761000ISO/ANSI# WNMG432MPSeries KENLOC

$25.82List $31.52 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeKCM25
MaterialCarbide
CoatingTiN

Description

The Kennametal 3761000 is a carbide indexable insert, grade KCM25, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerMP
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberWNMG432MP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Length range0.6500 - 0.7000
Manufacturers catalog number3761000
Manufacturer gradeKCM25
Material gradeC1; C2
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
