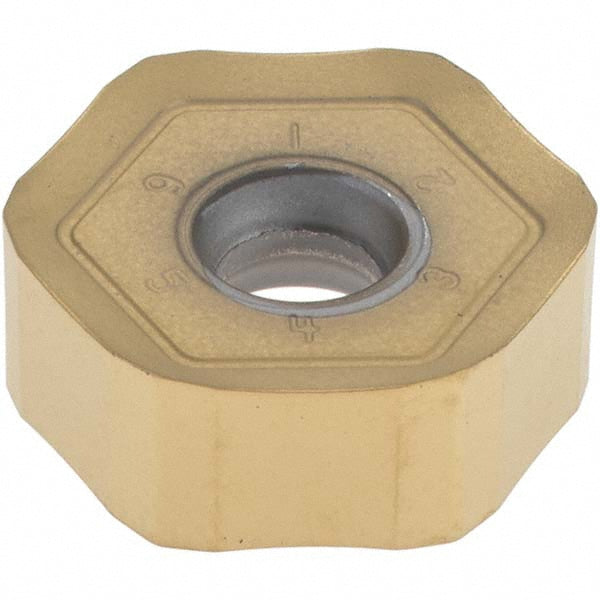

HNPJ0905ANSNGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3763727

Kennametal

HNPJ0905ANSNGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3763727

MFR# 3763727ISO/ANSI# HNPJ0905ANSNGDCat# HNPJ0905ANSNGDSeries HNPJ

$38.81List $46.55 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeHexagon
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 3763727 is a HNPJ0905ANSNGD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHNPJ535ANSNGD
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Included angle degree120
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size5
Insert size code535
Insert styleHNPJ
Iso codeHNPJ0905ANSNGD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNPJ0905ANSNGD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.3379
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
