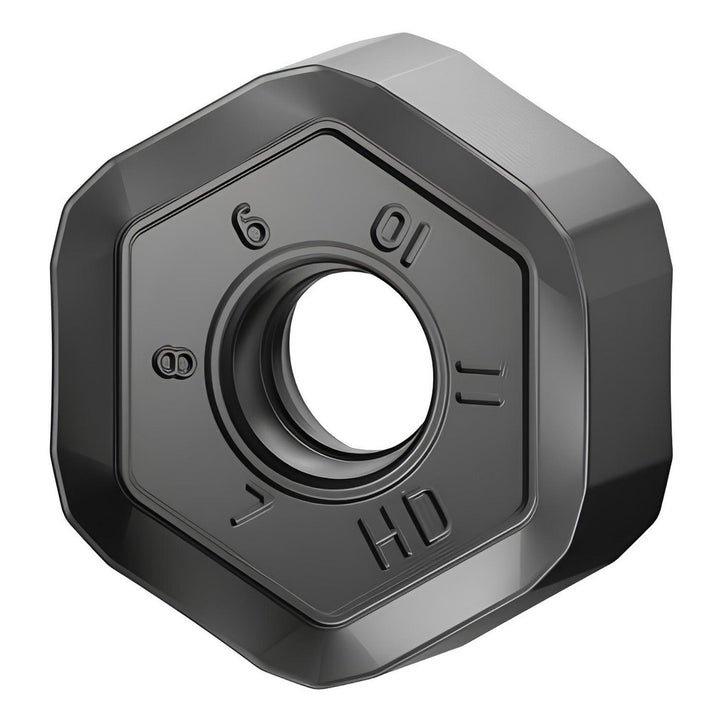

HNPJ090543ANSNHD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3763731
MFR# 3763731ISO/ANSI# HNPJ090543ANSNHDCat# HNPJ090543ANSNHDSeries HNPJ
$34.91List $42.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 3763731 is a HNPJ090543ANSNHD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeHNPJ53511ANSNHD
Chip breakerHD
Coating finishTiN
Coating processCVD
Corner radius in11/64
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Included angle degree120
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size5
Insert size code53511
Insert styleHNPJ
Iso codeHNPJ090543ANSNHD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNPJ090543ANSNHD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2142
Thickness range0.2000 to 0.2200
Width in5/8
