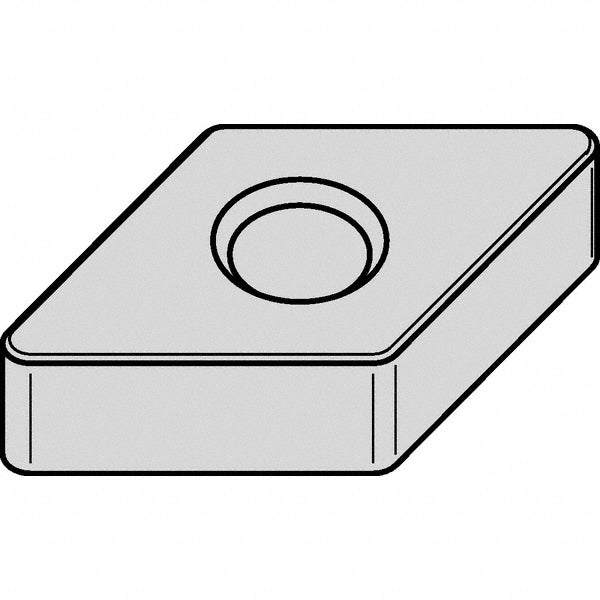

DNGA150408T01020 Whiskered Ceramic Insert, Grade KY4300 - Kennametal 3766691

Kennametal

DNGA150408T01020 Whiskered Ceramic Insert, Grade KY4300 - Kennametal 3766691

MFR# 3766691ISO/ANSI# DNGA150408Series KENLOC

$44.54List $53.42 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKY4300
MaterialWhiskered Ceramic

Description

The Kennametal 3766691 is a DNGA150408T01020 whiskered ceramic indexable insert, grade KY4300. Suited for superalloys & titanium.

Specifications

Ansi insert codeDNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2031
Included angle55
Industry standard numberDNGA432T0420
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialWhiskered Ceramic
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150408T01020
Iso insert codeDNGA150408
Iso size code150408
Length range0.7000 - 10.0000
Manufacturers catalog number3766691
Manufacturer gradeKY4300
Material gradeAlumina SiC
Maximum depth of cut0.4065
Maximum depth of cut frac in13/32
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
