Kennametal

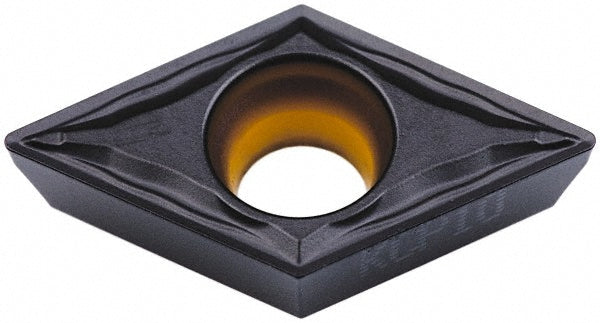

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3769018
MFR# 3769018ISO/ANSI# DPMT11T304Series Screw-On
$31.45List $38.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3769018 is a carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeDPMT3251
Ansi size code3251
Chip breakerFP
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle55
Industry standard numberDPMT3251FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code3251
Insert styleDPMT
Insert thickness in5/32
Iso insert codeDPMT11T304
Iso size code11T304
Length range0.7000 - 10.0000
Manufacturers catalog number3769018
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
