Kennametal

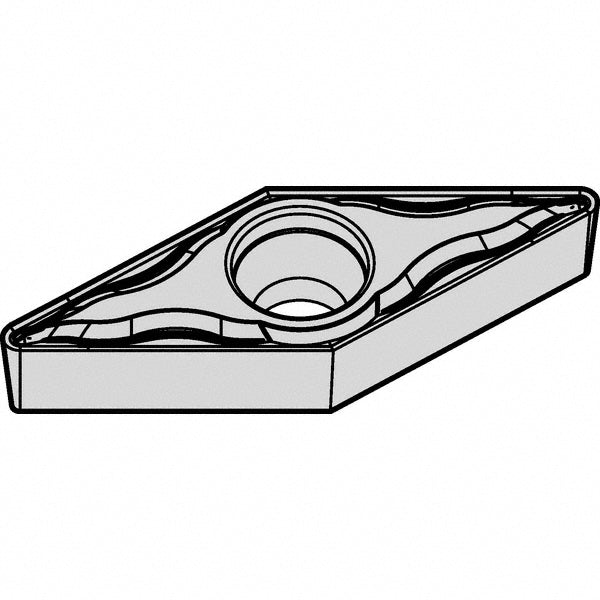

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3769170
MFR# 3769170ISO/ANSI# VBMT110308Series Screw-On
$28.56List $34.85
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3769170 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeVBMT222
Ansi size code222
Chip breakerFP
Chip breaker operationFinishing
Clearance codeB
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle35
Industry standard numberVBMT222FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8718
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code222
Insert styleVBMT
Insert thickness in1/8
Iso insert codeVBMT110308
Iso size code110308
Length range0.7000 - 10.0000
Manufacturers catalog number3769170
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0500
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
