Kennametal

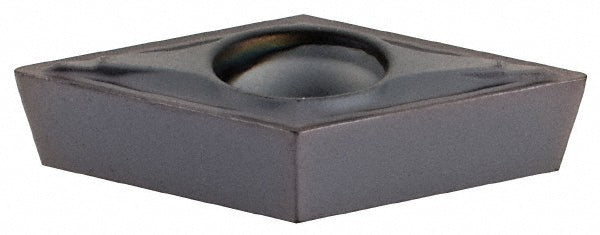

D - Diamond (Rhombic) 55-Deg 1/4" IC Carbide Insert, Grade KCS10, AlTiN - Kennametal 3769355
MFR# 3769355ISO/ANSI# DCMT070202Series Screw-On
$30.45List $36.53
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCS10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3769355 is a carbide indexable insert, grade KCS10, AlTiN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDCMT21505
Ansi size code21505
Chip breakerFP
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1102
Included angle55
Industry standard numberDCMT21505FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21505
Insert styleDCMT
Insert thickness in3/32
Iso insert codeDCMT070202
Iso size code070202
Length range0.6000 - 0.6500
Manufacturers catalog number3769355
Manufacturer gradeKCS10
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
