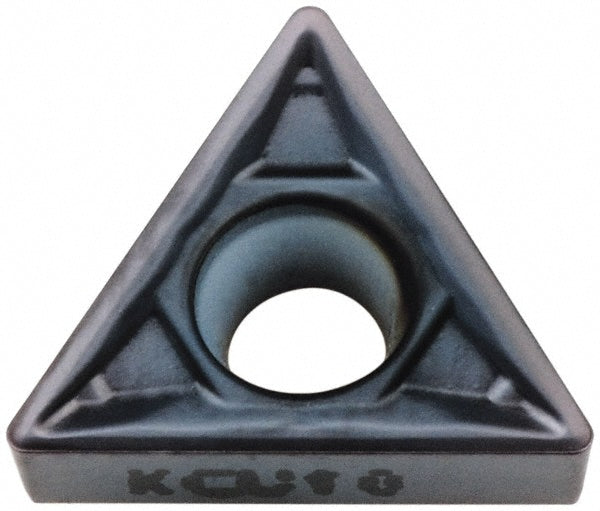

T - Triangle 1/4" IC Carbide Insert, Grade KCS10, AlTiN - Kennametal 3769380

Kennametal

T - Triangle 1/4" IC Carbide Insert, Grade KCS10, AlTiN - Kennametal 3769380

MFR# 3769380ISO/ANSI# TCMT110204Series Screw-On

$34.11List $40.91 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKCS10
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 3769380 is a carbide indexable insert, grade KCS10, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTCMT2151
Ansi size code2151
Chip breakerFP
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1102
Included angle60
Industry standard numberTCMT2151FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2151
Insert styleTCMT
Insert thickness in3/32
Iso insert codeTCMT110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturers catalog number3769380
Manufacturer gradeKCS10
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
