Kennametal

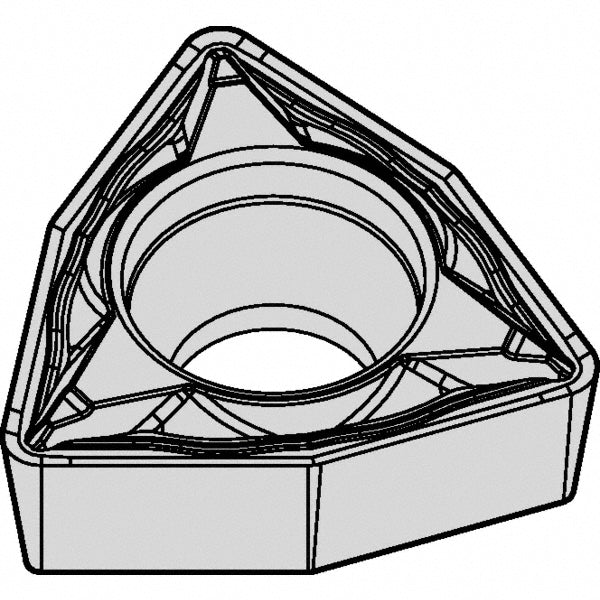

W - Trigon 80-Deg 3/16" IC Carbide Insert, Grade KCS10, AlTiN - Kennametal 3769412
MFR# 3769412ISO/ANSI# WPMTS3T104Series Screw-On
$27.97List $33.55
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
ShapeW - Trigon 80-Deg
GradeKCS10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3769412 is a carbide indexable insert, grade KCS10, AlTiN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeWPMT15121
Ansi size code15121
Chip breakerFP
Chip breaker operationFinishing
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.0846
Included angle80
Industry standard numberWPMT15121FP
Inscribed circle in3/16
Insert handNeutral
Insert holding methodScrew
Insert length0.2566
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code15121
Insert styleWPMT
Insert thickness in5/64
Iso insert codeWPMTS3T104
Iso size codeS3T104
Length range0.0000 - 0.3000
Manufacturers catalog number3769412
Manufacturer gradeKCS10
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.2566
Wiper edgeNo
