Kennametal

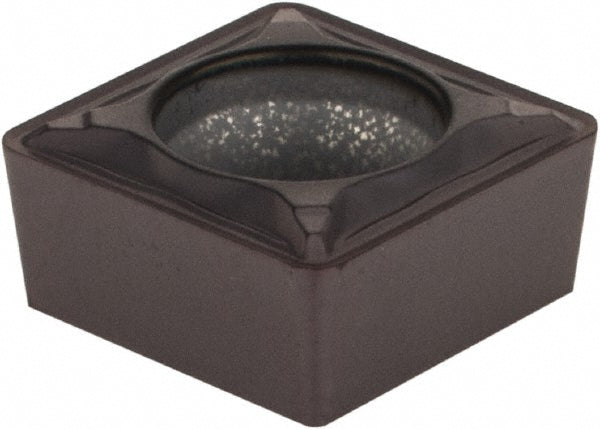

S - Square 3/8" IC Carbide Insert, Grade KCU25, AlTiN - Kennametal 3769441
MFR# 3769441ISO/ANSI# SCMT09T308Series Screw-On
$29.28List $35.74
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeS - Square
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3769441 is a carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeSCMT3252
Ansi size code3252
Chip breakerFP
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1732
Included angle90
Industry standard numberSCMT3252FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeS - Square
Insert size code3252
Insert styleSCMT
Insert thickness in5/32
Iso insert codeSCMT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog number3769441
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
