Kennametal

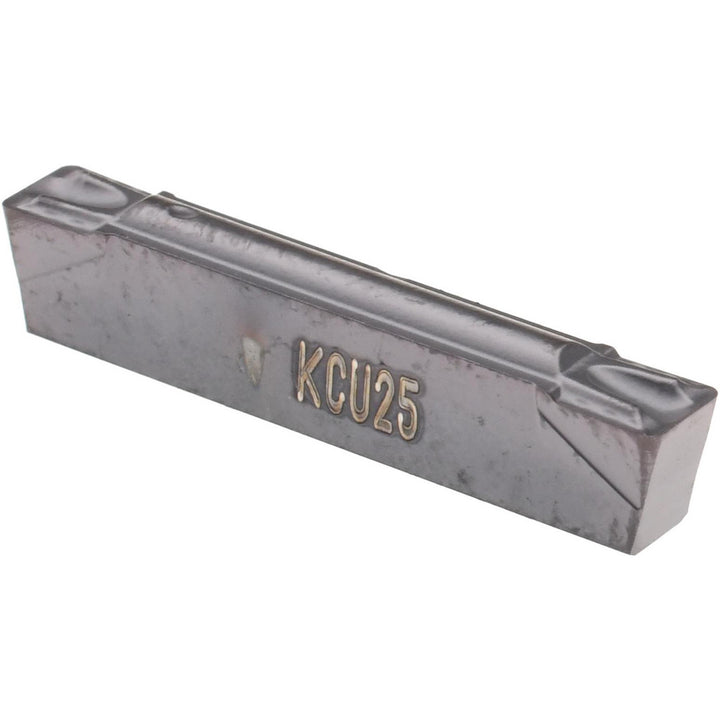

Carbide Insert, Grade KCU25, AlTiN - Kennametal 3781254
MFR# 3781254Series A4
$52.42List $62.87
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3781254 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size0300
Insert styleA4G
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1142
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolNo
Overall length0.7874
RakePositive
