Kennametal

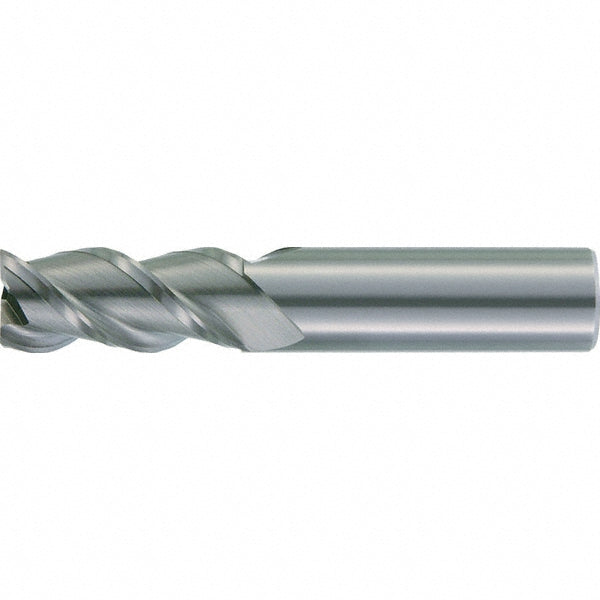

5/8" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3866269

MFR# 3866269Series AADE

$211.31List $271.02 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 3866269 is a 5/8 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1-5/8 length of cut, 3-1/2 overall length. Series AADE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withER Single Angle Standard Collets

Helix styleHigh

Length of cut in1-5/8

Length typeLong

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in5/8

Number of flutes3

Overall length in3-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in5/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
