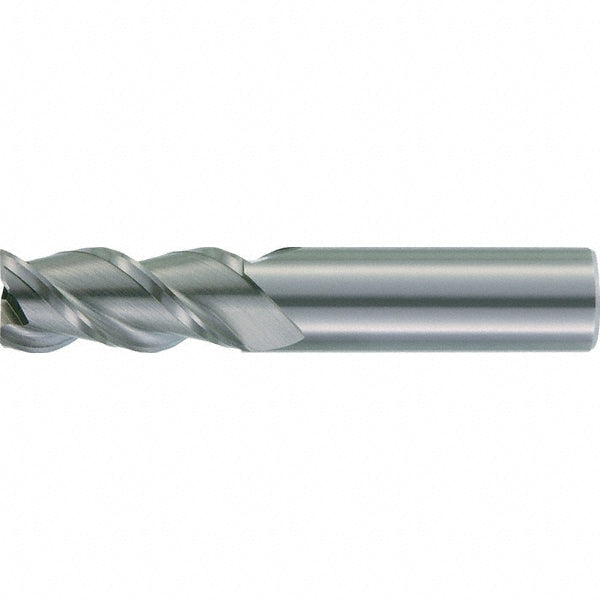

1/8" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3870446

Kennametal

1/8" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3870446

MFR# 3870446Series AADE

$41.26List $52.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide

Description

The Kennametal 3870446 is a 1/8 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 3/4 length of cut, 3 overall length. Series AADE.

Specifications

CentercuttingYes
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withER Single Angle Standard Collets
Helix styleHigh
Length of cut in3/4
Length typeExtra Long
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in1/8
Number of flutes3
Overall length in3
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
