Kennametal

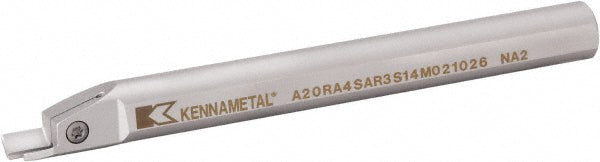

Indexable Grooving - Kennametal 3871032
MFR# 3871032Series A4
$318.33List $388.57
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 3871032 indexable grooving. Series A4.
Specifications
Center to cutting edge0.4539
Complete insert compatibilityA4G0300M3SP04B
Coolant throughYes
Hand of holderRight Hand
Head length1.5118
Insert compatibilityA4G0300M3SP04B
Insert holding methodClamp
Insert seat size3S
Maximum depth of cut0.5512
Maximum groove outside diameter1.4170
Maximum workpiece diameter1.4173
Minimum axial groove inside diameter1.0240
Minimum groove width0.1181
Minimum hole diameter1.0236
Multi use toolYes
Overall length8.0118
Shank length6.5000
Toolholder styleA4SS
