Kennametal

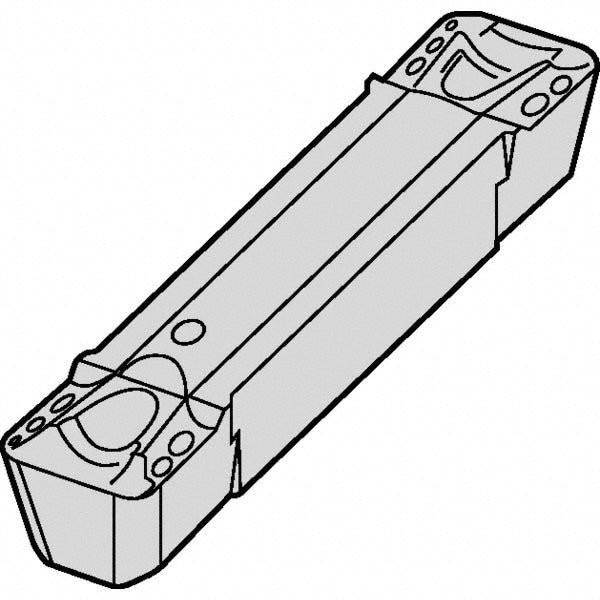

Carbide Insert, Grade KCU10 - Kennametal 3871069
MFR# 3871069Series A4
$48.87List $59.65
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
Description
The Kennametal 3871069 is a carbide indexable insert, grade KCU10.
Specifications
Chip breakerGUP
Coating processPVD
Corner radius0.0079
Cutting width0.0787
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size0200
Insert styleA4G
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0748
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
Overall length0.7874
RakePositive
