Kennametal

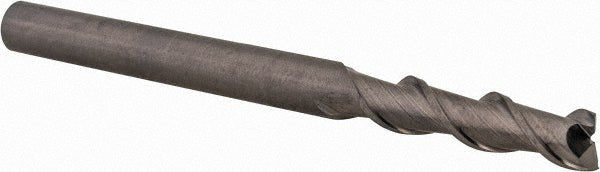

1/4" 2-Flute Solid Carbide Corner Radius End Mill - Kennametal 3876362
MFR# 3876362Series AADF
$65.81List $82.94
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes2
MaterialSolid Carbide
Description
The Kennametal 3876362 is a 1/4 2-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1 length of cut, 3 overall length. Series AADF.
Specifications
CentercuttingYes
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores
Helix styleHigh
Length of cut in1
Length typeLong
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in1/4
Mill diameter tolerance+0.000000/-0.000350 in
Number of flutes2
Overall length in3
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
