Kennametal

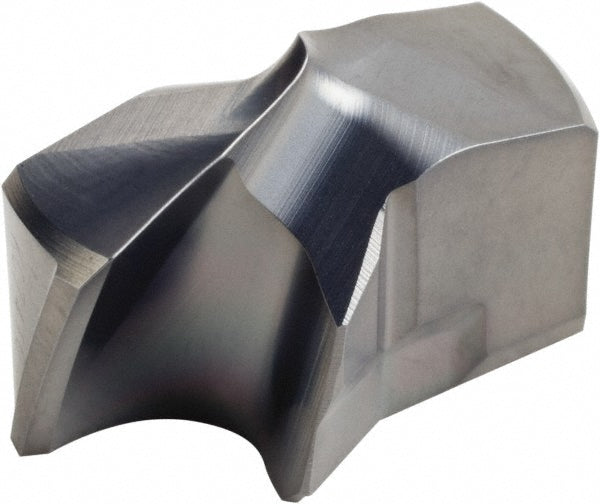

Carbide Insert, Grade KC7410, AlCr - Kennametal 3884397
MFR# 3884397Series KSEM
$158.30List $189.86
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKC7410
CoatingAlCr
Description
The Kennametal 3884397 is a carbide indexable insert, grade KC7410, AlCr coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.
Specifications
ApplicationsDrilling
Coating finishAlCr
Coating processPVD
Coolant throughNo
Cutting diameter in17/32
DrillingStackedPlates
Drill point angle140
Flute length (mm)7.00
Flute typeHelical
Functional length0.2658
Height in17/64
Included angle degree140
Insert geometryHPCCL
Insert holding methodClamp
Insert seat sizeC
Iso numberKSEM1350HPCCLM
Manufacturer gradeKC7410
Material gradeK15
Number of flutes2
Overall length projection0.2658
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
