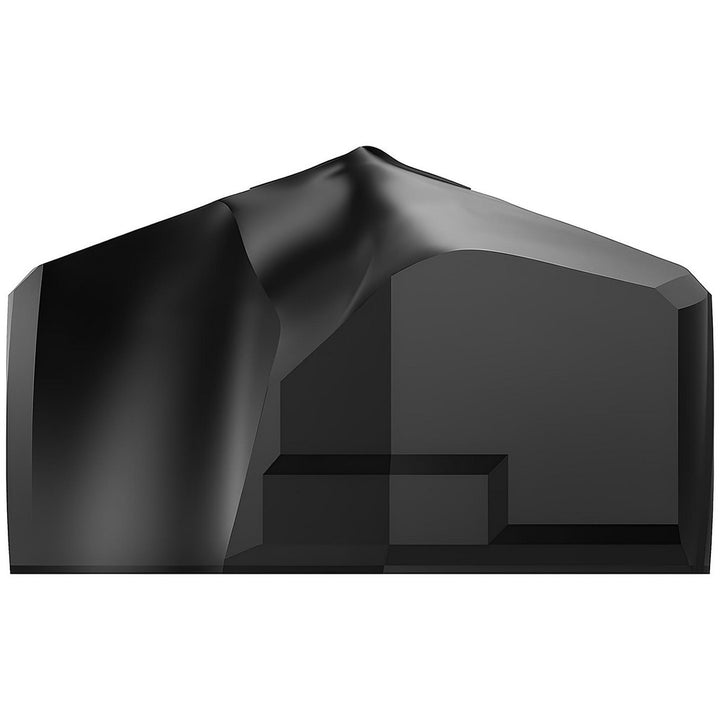

Carbide Insert, Grade KC7410, AlCr - Kennametal 3884444

Kennametal

Carbide Insert, Grade KC7410, AlCr - Kennametal 3884444

MFR# 3884444Series KSEM

$190.59List $232.63 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKC7410
CoatingAlCr

Description

The Kennametal 3884444 is a carbide indexable insert, grade KC7410, AlCr coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishAlCr
Coating processPVD
Coolant throughNo
Cutting diameter0.8661
DrillingStackedPlates
Drill point angle140
Flute length (mm)11.00
Flute typeHelical
Functional length0.4331
Height0.5118
Included angle degree140
Insert geometryHPCCL
Insert holding methodClamp
Insert seat size3
Iso numberKSEM2200HPCCLM
Manufacturer gradeKC7410
Material gradeK15
Number of flutes2
Overall length projection0.5851
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
