Carbide Insert, Grade KC7410, AlCr - Kennametal 3884491

Kennametal

Carbide Insert, Grade KC7410, AlCr - Kennametal 3884491

MFR# 3884491Series KSEM

$219.32List $267.71 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKC7410
CoatingAlCr

Description

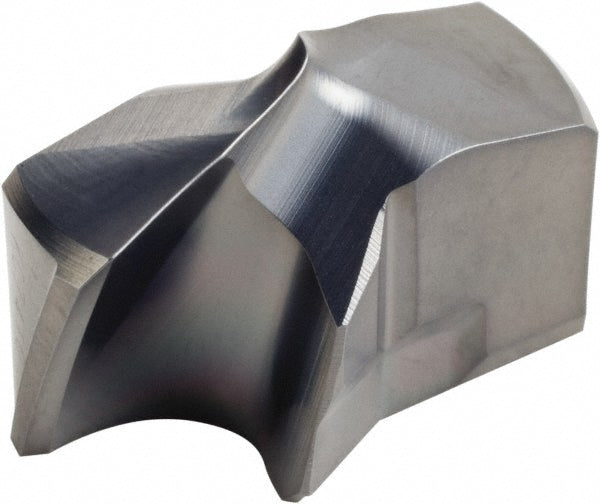

The Kennametal 3884491 is a carbide indexable insert, grade KC7410, AlCr coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishAlCr
Coating processPVD
Coolant throughNo
Cutting diameter (mm)26.00
DrillingStackedPlates
Drill point angle140
Flute length (mm)13.00
Flute typeHelical
Functional length0.5050
Height (mm)13.00
Included angle degree140
Insert geometryHPCCL
Insert holding methodClamp
Insert seat size5
Iso numberKSEM1011HPCCL
Manufacturer gradeKC7410
Material gradeK15
Number of flutes2
Overall length projection0.5050
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
