Kennametal

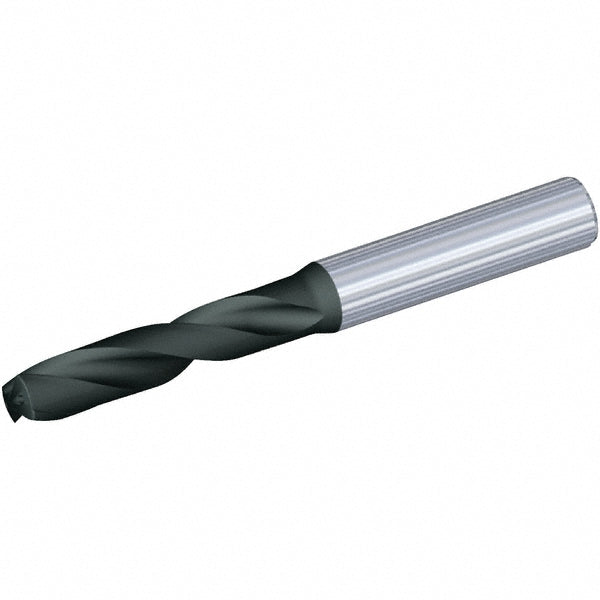

#10 Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 3904171
MFR# 3904171
$223.62List $281.81
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingAlTiN
Description
The Kennametal 3904171 is a #10 Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for steel, stainless steel, high-temp alloy.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0002 to 0.0006 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1935
Drill bit size range0.1500 - 0.2000
Drill bit size wire#10
Drill point angle degrees140
Drill point length0.0378
Flute by diameter ratio5xD
Flute length1.7323
Flute typeRegular Spiral
Material gradeKC7315
Maximum drilling depth1.3780
Overall length3.2283
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
