Kennametal

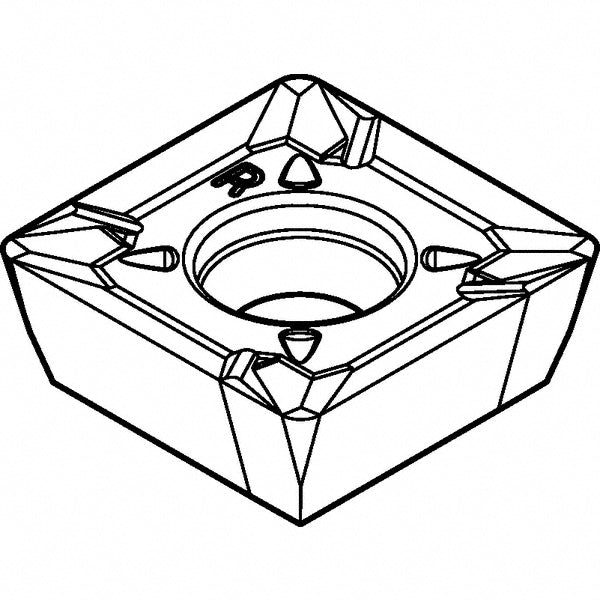

SDCT120408PDERLD2 Solid Carbide Insert, Grade KCPM20, TiN - Kennametal 3954605
MFR# 3954605ISO/ANSI# SDCT120408PDERLD2Cat# SDCT120408PDERLD2Series SDCT
$25.89List $31.05
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeKCPM20
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 3954605 is a SDCT120408PDERLD2 solid carbide indexable insert, grade KCPM20, TiN coated. Suited for steel, stainless steel, cast iron, hard material.
Specifications
Chip breakerLD2
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code43
Insert styleSDCT
Iso codeSDCT120408PDERLD2
Manufacturers catalog numberSDCT120408PDERLD2
Manufacturer gradeKCPM20
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
