Kennametal

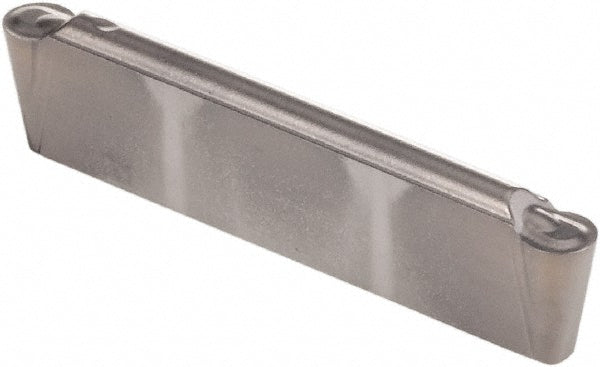

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4034813
MFR# 4034813Cat# A4R0200M02P00GMPSeries A4
$42.68List $52.10
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4034813 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGMP
Coating finishAlTiN
Coating processPVD
Corner radius0.0394
Cutting height0.1610
Cutting width0.0787
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size0200
Insert styleR
Manufacturers catalog numberA4R0200M02P00GMP
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0670
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolYes
Overall length0.7874
