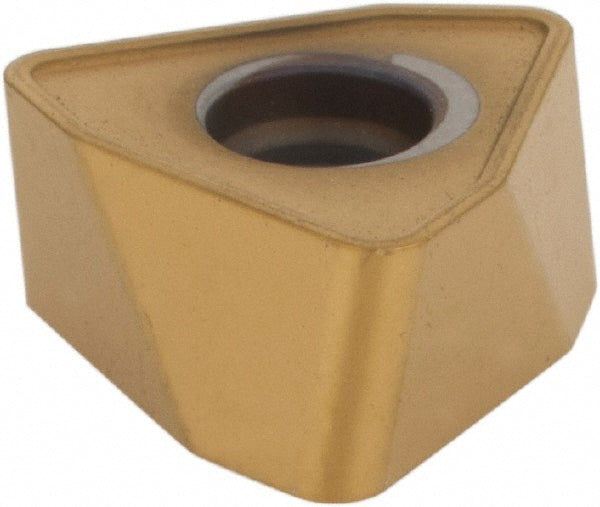

WOEJ090512SRHD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 4034880
MFR# 4034880ISO/ANSI# WOEJ090512SRHDCat# WOEJ090512SRHDSeries WOEJ
$44.63List $53.53
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 4034880 is a WOEJ090512SRHD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeWOEJ090512SRHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius0.0480
Cutter series compatibilityKenFeed
Cutting edge styleChamfered; Honed
Inscribed circle0.3510
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size09
Insert size code090512
Insert styleWOEJ
Iso codeWOEJ090512SRHD
Length0.4598
Length range0.4500 to 0.5000
Manufacturers catalog numberWOEJ090512SRHD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2150
Thickness range0.2000 to 0.2200
Width0.3510
