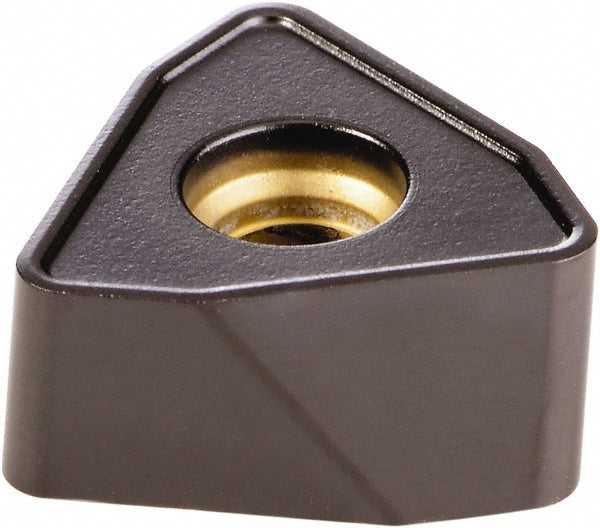

WOEJ090512SRHD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 4034881

Kennametal

WOEJ090512SRHD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 4034881

MFR# 4034881ISO/ANSI# WOEJ090512SRHDCat# WOEJ090512SRHDSeries WOEJ

$46.44List $55.69 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 4034881 is a WOEJ090512SRHD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeWOEJ090512SRHD
Chip breakerHD
Coating finishTiN
Coating processCVD
Corner radius0.0480
Cutter series compatibilityKenFeed
Cutting edge styleHoned T-Land
Hole diameter0.1402
Included angle degree80
Inscribed circle0.3510
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size09
Insert size code090512
Insert styleWOEJ
Iso codeWOEJ090512SRHD
Length0.4598
Length range0.4500 to 0.5000
Manufacturers catalog numberWOEJ090512SRHD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2150
Thickness range0.2000 to 0.2200
Width0.3510
