Kennametal

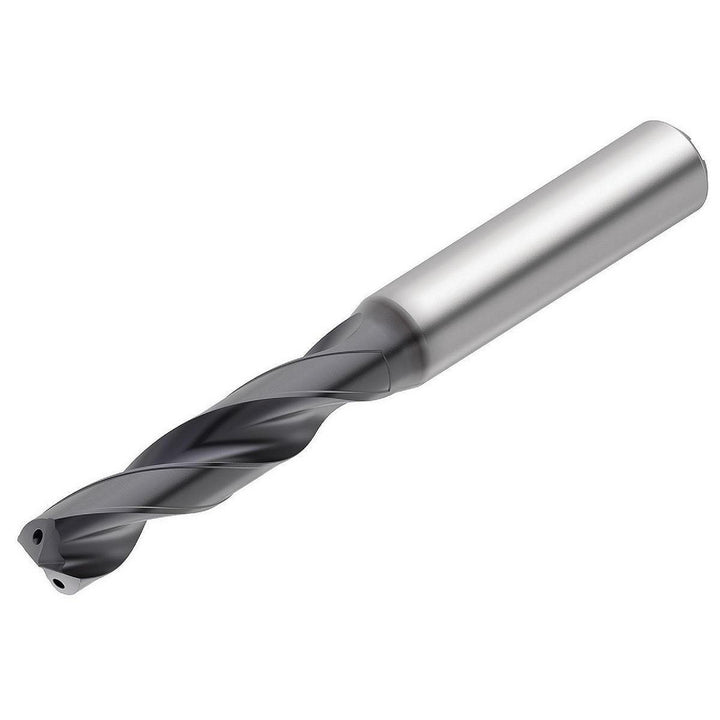

0.0984" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 4042542
MFR# 4042542Series B976Z
$104.10List $133.31
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Kennametal 4042542 is a 0.0984" Solid Carbide drill bit with a TiAlN finish, 140° point. Series B976Z.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.0984
Drill bit size range0.0000 to 0.1000
Drill point angle140
Drill point length0.0157
Flute by diameter ratio3xD
Flute length0.6299
Flute typeRegular Spiral
Number of flutes2
Overall length1.9685
Point typeStandard
Shank diameter0.1181
Shank length1.1024
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
