Kennametal

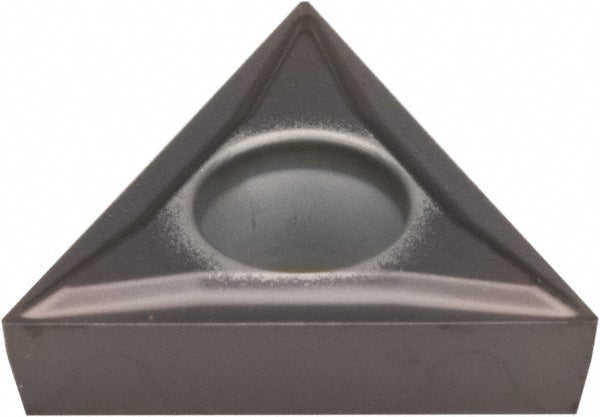

TCGT110204LF Carbide Insert, Grade KCU10, TiAlN - Kennametal 4044822
MFR# 4044822ISO/ANSI# TCGT110204Series Screw-On
$36.36List $43.62
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4044822 is a TCGT110204LF carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTCGT2151
Ansi size code2151
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1102
Included angle60
Industry standard numberTCGT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2151
Insert styleTCGT
Insert thickness in3/32
Iso codeTCGT110204LF
Iso insert codeTCGT110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturers catalog number4044822
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1442
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
