Kennametal

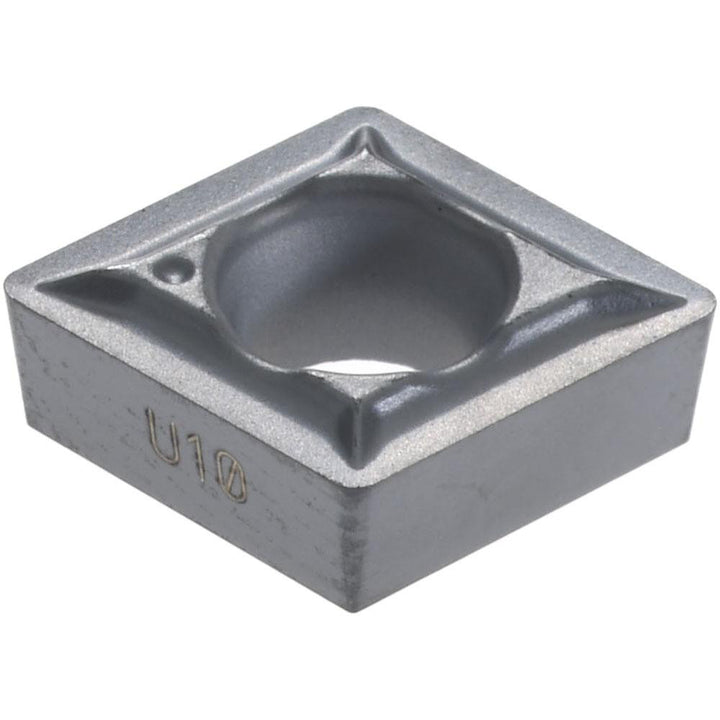

CCGT060204LF Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045138
MFR# 4045138ISO/ANSI# CCGT060204Series Screw-On
$27.10List $33.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4045138 is a CCGT060204LF carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCCGT2151
Ansi size code2151
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1142
Included angle80
Industry standard numberCCGT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2151
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060204LF
Iso insert codeCCGT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog number4045138
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0845
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
