Kennametal

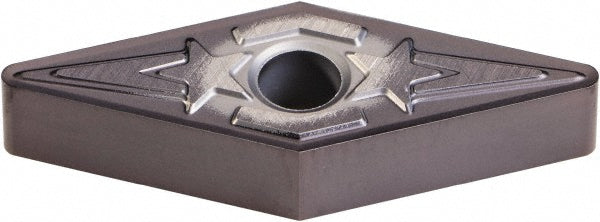

VNGG160408LF Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045143
MFR# 4045143ISO/ANSI# VNGG160408Series KENLOC
$34.00List $41.51
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4045143 is a VNGG160408LF carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVNGG332
Ansi size code332
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1500
Included angle35
Industry standard numberVNGG332LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG160408LF
Iso insert codeVNGG160408
Iso size code160408
Length range0.7000 - 10.0000
Manufacturers catalog number4045143
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
