Kennametal

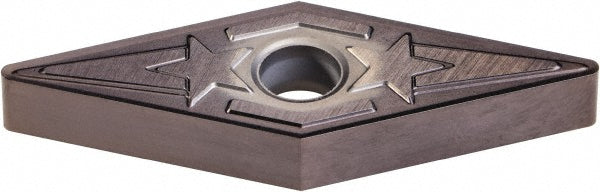

VNGG220408LF Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045144
MFR# 4045144ISO/ANSI# VNGG220408Series KENLOC
$51.27List $61.49
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4045144 is a VNGG220408LF carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVNGG432
Ansi size code432
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle35
Industry standard numberVNGG432LF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.7434
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code432
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG220408LF
Iso insert codeVNGG220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number4045144
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.5806
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
