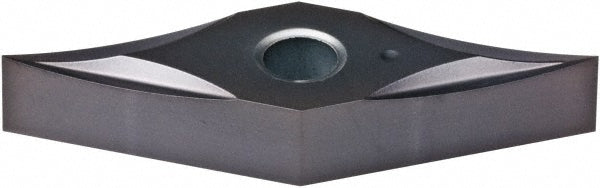

VNGP220408 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045148

Kennametal

VNGP220408 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045148

MFR# 4045148ISO/ANSI# VNGP220408Series KENLOC

$36.78List $44.90 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4045148 is a VNGP220408 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeVNGP432
Ansi size code432
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle35
Industry standard numberVNGP432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.7434
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code432
Insert styleVNGP
Insert thickness in3/16
Iso codeVNGP220408
Iso insert codeVNGP220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number4045148
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.5806
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
