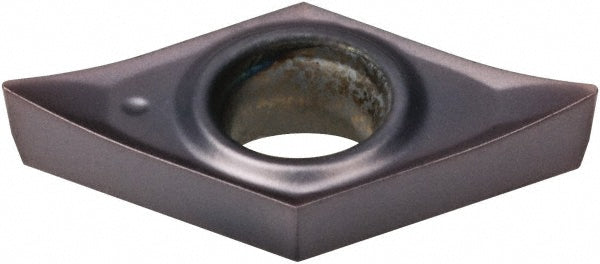

DCGT11T302HP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045241

Kennametal

DCGT11T302HP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045241

MFR# 4045241ISO/ANSI# DCGT11T302Series Screw-On

$30.91List $37.73 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4045241 is a DCGT11T302HP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeDCGT32505
Ansi size code32505
Chip breakerHP
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1732
Included angle55
Industry standard numberDCGT32505HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32505
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T302HP
Iso insert codeDCGT11T302
Iso size code11T302
Length range0.7000 - 10.0000
Manufacturers catalog number4045241
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
