Kennametal

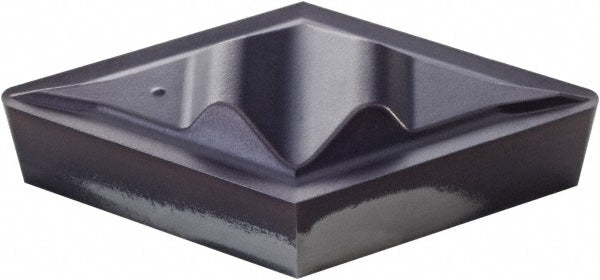

DCGR150408 Carbide Insert, Grade KCU10 - Kennametal 4045246
MFR# 4045246ISO/ANSI# DCGR150408Series DPGR
$44.13List $52.92
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeKCU10
MaterialCarbide
Description
The Kennametal 4045246 is a DCGR150408 carbide indexable insert, grade KCU10. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating processPVD
Corner radius0.0312
Hole diameter0.0000
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6104
Insert materialCarbide
Insert size code432
Insert styleDPGR
Iso codeDCGR150408
Manufacturer gradeKCU10
Material gradeP10; P20; M10; M20; K05; K20; N10; N20; S10; S20; H10
Maximum depth of cut0.2035
Msc manufacturer numberDPGR432
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle5
Relief angle8
ShapeParallelogram
Side length0.6104
StandardsDPGR432; DCGR150408
Thickness in3/16
Width in1/2
