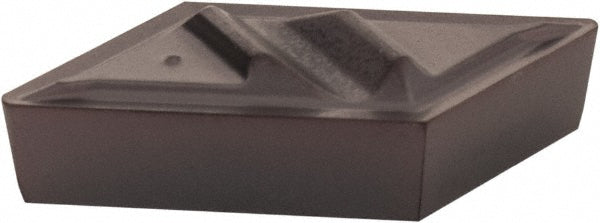

KCGR110304R08 Carbide Insert, Grade KCU10 - Kennametal 4045249

Kennametal

KCGR110304R08 Carbide Insert, Grade KCU10 - Kennametal 4045249

MFR# 4045249ISO/ANSI# KCGR110304R08Series Top Not

$26.44List $32.27 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
GradeKCU10
MaterialCarbide

Description

The Kennametal 4045249 is a KCGR110304R08 carbide indexable insert, grade KCU10. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating processPVD
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle in1/4
Insert handRight Hand
Insert height0.1250
Insert holding methodClamp
Insert length in3/8
Insert materialCarbide
Insert size code51R
Insert styleNPGR
Iso codeKCGR110304R08
Manufacturer gradeKCU10
Material gradeP10; P20; M10; M20; K05; K20; N10; N20; S10; S20; H10
Maximum depth of cut0.1250
Msc manufacturer numberNPGR51R
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.3750
StandardsNPGR51R; KCGR110304R08
Thickness in1/8
Width in1/4
