Kennametal

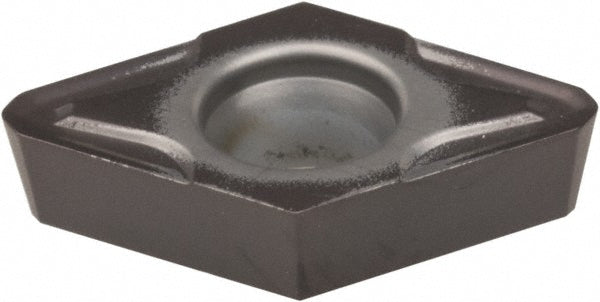

DPMT070208FW Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045283
MFR# 4045283ISO/ANSI# DPMT070208Series Screw-On
$26.20List $31.99
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4045283 is a DPMT070208FW carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDPMT2152
Ansi size code2152
Chip breakerFW
Chip breaker operationWiper - Finishing
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1102
Included angle55
Industry standard numberDPMT2152FW
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code2152
Insert styleDPMT
Insert thickness in3/32
Iso codeDPMT070208FW
Iso insert codeDPMT070208
Iso size code070208
Length range0.6000 - 0.6500
Manufacturers catalog number4045283
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2033
Maximum depth of cut frac in13/64
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeYes
