Kennametal

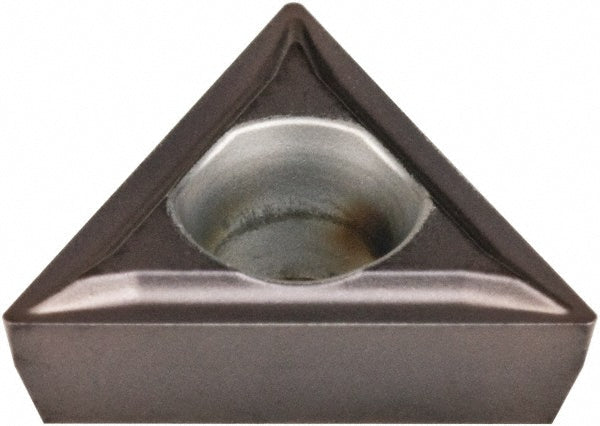

TPGT110202LF Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045324
MFR# 4045324ISO/ANSI# TPGT110202Series Screw-On
$24.49List $29.89
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4045324 is a TPGT110202LF carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTPGT21505
Ansi size code21505
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1102
Included angle60
Industry standard numberTPGT21505LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21505
Insert styleTPGT
Insert thickness in3/32
Iso codeTPGT110202LF
Iso insert codeTPGT110202
Iso size code110202
Length range0.4000 - 0.5000
Manufacturers catalog number4045324
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1442
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
