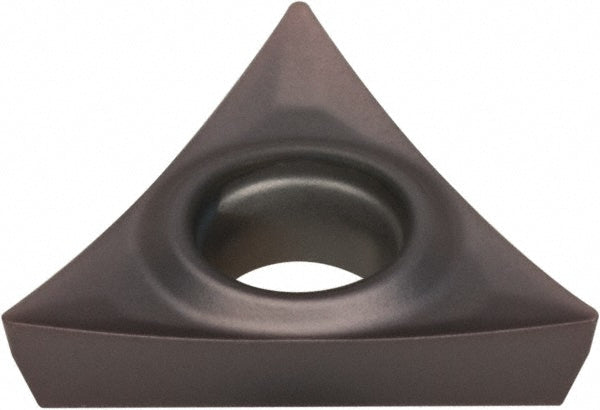

TPGT16T302HP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045330

Kennametal

TPGT16T302HP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045330

MFR# 4045330ISO/ANSI# TPGT16T302Series Screw-On

$33.33List $40.69 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4045330 is a TPGT16T302HP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTPGT32505
Ansi size code32505
Chip breakerHP
Chip breaker operationFinishing
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1732
Included angle60
Industry standard numberTPGT32505HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32505
Insert styleTPGT
Insert thickness in5/32
Iso codeTPGT16T302HP
Iso insert codeTPGT16T302
Iso size code16T302
Length range0.6000 - 0.6500
Manufacturers catalog number4045330
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
