Kennametal

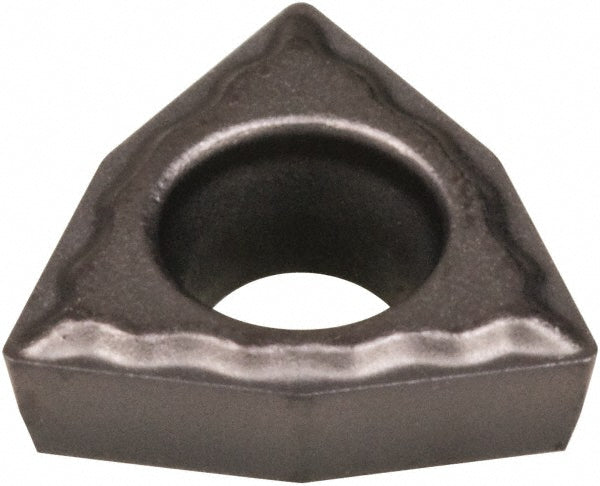

WPGTS30102UF Carbide Insert, Grade KCU10, TiAlN - Kennametal 4045345
MFR# 4045345ISO/ANSI# WPHTS30102Series Screw-On
$17.37List $21.20
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
ShapeW - Trigon 80-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4045345 is a WPGTS30102UF carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeWPHT15105
Ansi size code15105
Chip breakerUF
Chip breaker operationFinishing
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.0850
Included angle80
Industry standard numberWPHT15105UF
Inscribed circle in3/16
Insert handNeutral
Insert holding methodScrew
Insert length0.2564
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code15105
Insert styleWPHT
Insert thickness in1/16
Iso codeWPGTS30102UF
Iso insert codeWPHTS30102
Iso size codeS30102
Length range0.0000 - 0.3000
Manufacturers catalog number4045345
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0854
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeH
Width0.2564
Wiper edgeNo
