Kennametal

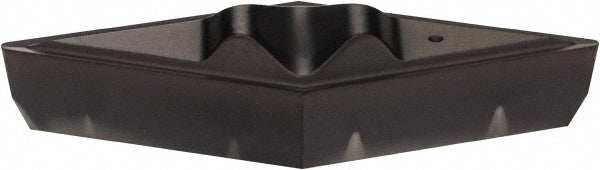

VCGR160404 Carbide Insert, Grade KCU10 - Kennametal 4045427
MFR# 4045427ISO/ANSI# VCGR160404Series Top Not
$43.19List $51.81
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeKCU10
MaterialCarbide
Description
The Kennametal 4045427 is a VCGR160404 carbide indexable insert, grade KCU10. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating processPVD
Corner radius0.0156
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6538
Insert materialCarbide
Insert size code331
Insert styleVPGR
Iso codeVCGR160404
Manufacturer gradeKCU10
Material gradeP10; P20; M10; M20; K05; K20; N10; N20; S10; S20; H10
Maximum depth of cut0.2179
Msc manufacturer numberVPGR331
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle8
ShapeParallelogram
Side length0.6538
StandardsVPGR331; VCGR160404
Thickness in3/16
Width in3/8
