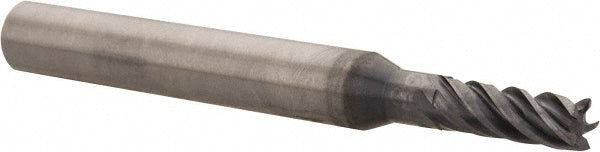

0.1575" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 4046285

Kennametal

0.1575" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 4046285

MFR# 4046285Series UCDE

$83.83List $105.65 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4046285 is a 0.1575 5-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 0.4331 length of cut. Series UCDE.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut0.4331
Length of cut range0.3000 - 0.5000
Material gradeKCPM15
Mill diameter0.1575
Number of flutes5
Overall length (mm)55.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter0.2362
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexYes
