Kennametal

0.1575" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4046358

MFR# 4046358Series F3AS

$61.94List $79.43 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

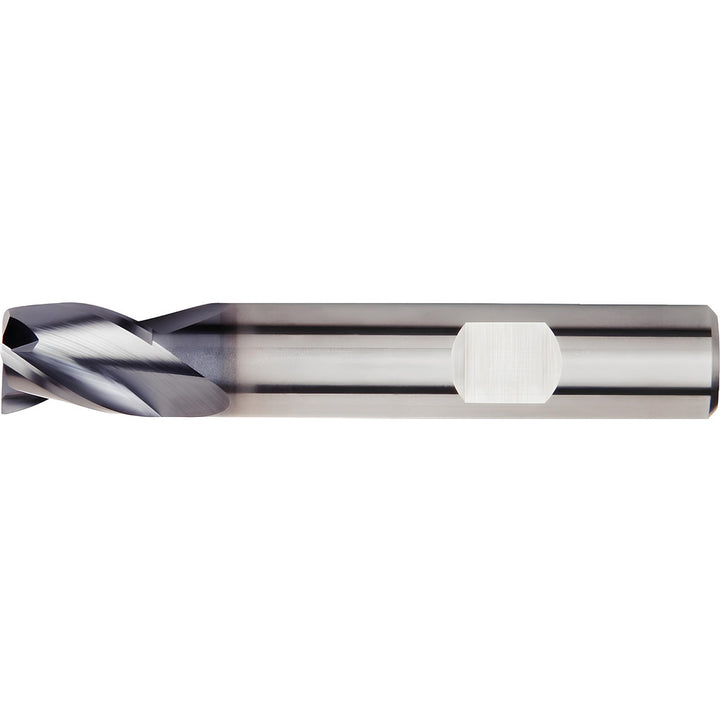

The Kennametal 4046358 is a 0.1575 3-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series F3AS.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0098

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withER Single Angle Standard Collets; ER Single Angle Standard Collets; HC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Metric Bores

Helix styleMedium

Length of cut0.1969

Length typeLong

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing

Mill diameter0.1575

Number of flutes3

Overall length (mm)58.00

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Shank diameter (mm)6.00

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
