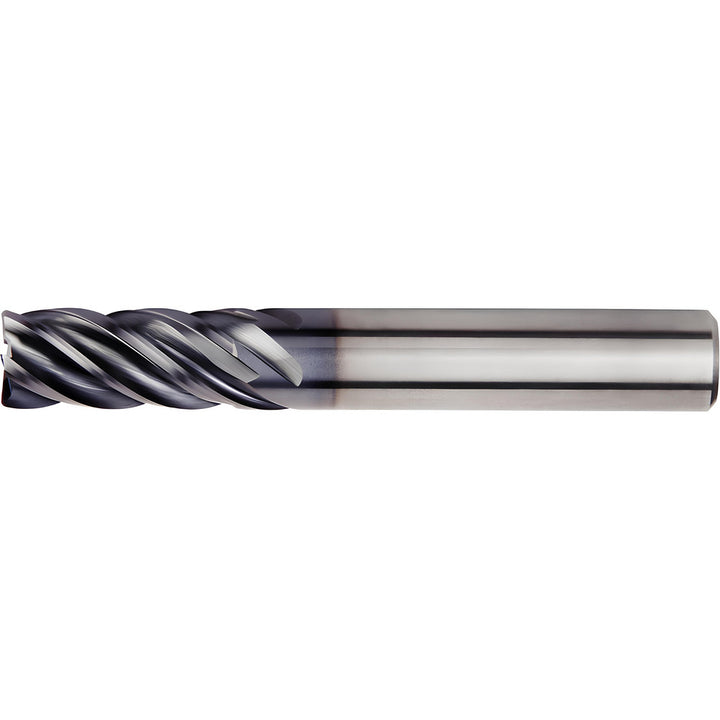

0.3937" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4046385

Kennametal

0.3937" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4046385

MFR# 4046385Series UCDE

$126.80List $162.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4046385 is a 0.3937 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. Series UCDE.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0197
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withER Single Angle Standard Collets
Helix styleHigh
Length of cut0.8661
Length typeLong
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter0.3937
Number of flutes5
Overall length (mm)72.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter (mm)10.00
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
