Kennametal

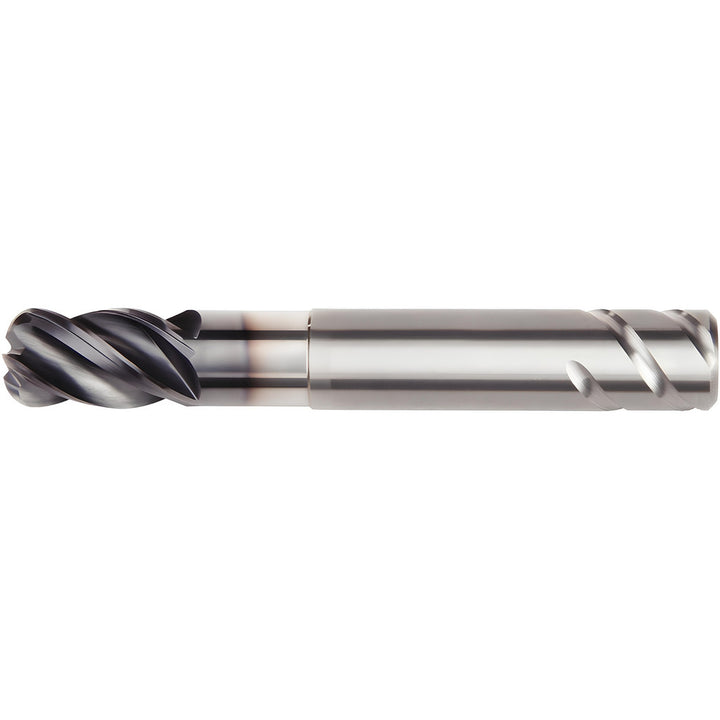

0.4724" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4046413

MFR# 4046413Series F4AS

$139.78List $179.27 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4046413 is a 0.4724 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. Series F4AS.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0394

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withER Single Angle Standard Collets

Helix styleHigh

Length of cut0.7087

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter0.4724

Mill diameter tolerance-0.032000/-0.059000 mm

Neck diameter0.4528

Number of flutes4

Overall length (mm)84.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Reach length1.4173

Shank diameter (mm)12.00

Shank diameter tolerance+0.000/-0.011 mm

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
