Kennametal

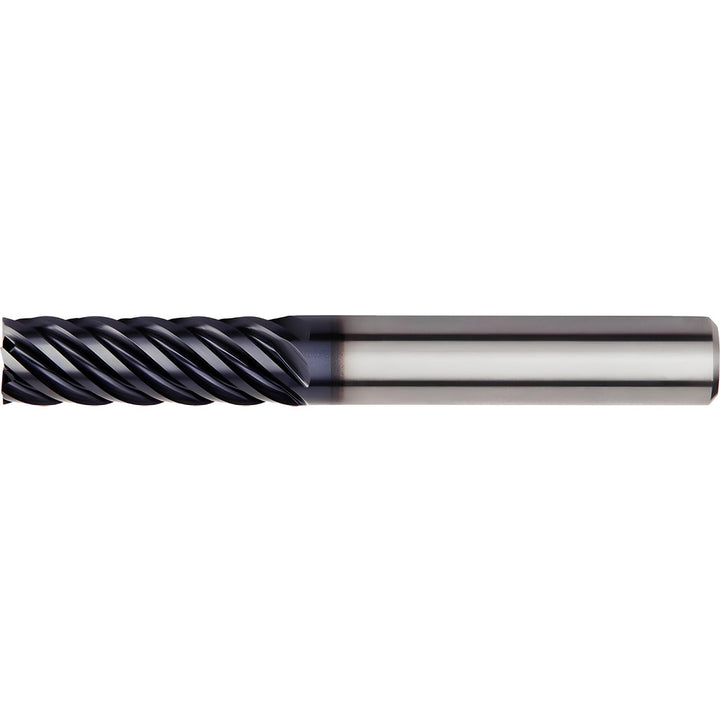

0.3937" 6-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 4046526

MFR# 4046526Cat# F6AJ1000AWL45Series F6AJ

$92.57List $118.73 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4046526 is a 0.3937 6-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. Series F6AJ.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingNo

Chamfer angle45

Chamfer length (mm)0.30

Chamfer width0.0118

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleHigh

Length of cut1.1811

Length typeExtra Long

Manufacturers catalog numberF6AJ1000AWL45

Material gradeKCPM15

Material removal typeFinishing

Mill diameter0.3937

Mill diameter tolerance+0.000 to -0.090 mm

Number of flutes6

Overall length (mm)79.98

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Reach length (mm)30.00

Shank diameter (mm)10.00

Shank diameter tolerance+0.000 to -0.009 mm

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
