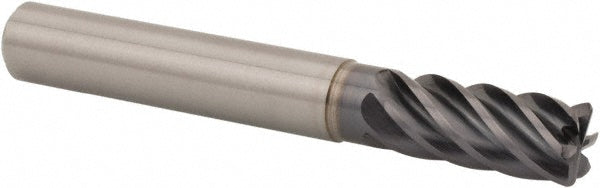

0.3937" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5350321

Name: 0.3937" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5350321
Brand: Kennametal
SKU: 5350321
Price: 164.78 USD
Availability: InStock

MFR# 5350321Series UJDE

$164.78List $207.67 Save 20%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 5350321 is a 0.3937 6-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. Series UJDE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0787

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withER Single Angle Standard Collets

Helix styleHigh

Length of cut0.8661

Length typeStandard

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeFinishing

Mill diameter0.3937

Mill diameter tolerance+0.000000/-0.002000 in

Neck diameter (mm)9.40

Number of flutes6

Overall length (mm)76.00

PitchClose

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Reach length (mm)30.28

Shank diameter (mm)10.00

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
