Kennametal

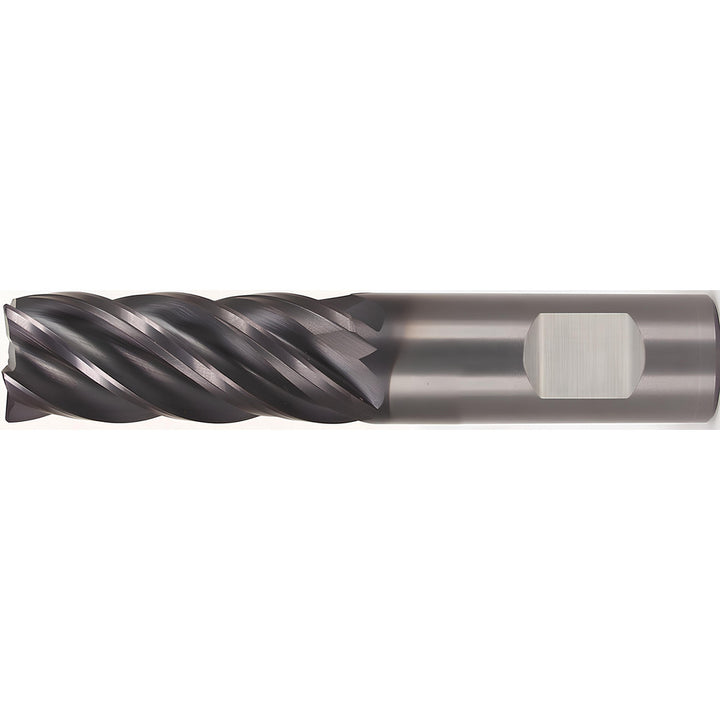

3/16" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4048709

MFR# 4048709Series UCDE

$63.54List $81.50 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4048709 is a 3/16 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 5/8 length of cut, 2-1/4 overall length. Series UCDE.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withER Single Angle Standard Collets

Helix styleHigh

Length of cut in5/8

Length typeLong

Material applicationSteel; Stainless Steel; Cast Iron; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in3/16

Number of flutes5

Overall length in2-1/4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Shank diameter in3/16

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
