Kennametal

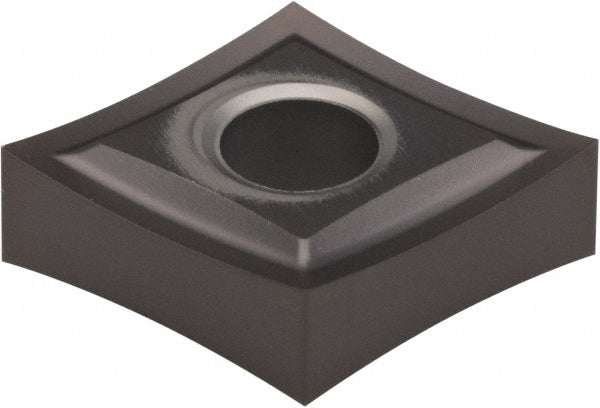

CNGP120408 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050060
MFR# 4050060ISO/ANSI# CNGP432Series KENLOC
$38.95List $46.72
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4050060 is a CNGP120408 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerCommon
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberCNGP432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNGP
Insert thickness in3/16
Iso codeCNGP120408
Length range0.5000 - 0.6000
Manufacturers catalog number4050060
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
