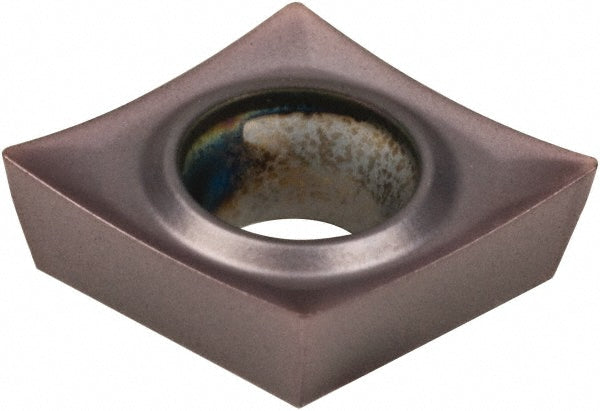

CPGT060204HP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050416
MFR# 4050416ISO/ANSI# CPGT060204Series Screw-On
$22.47List $26.95
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4050416 is a CPGT060204HP carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCPGT2151
Ansi size code2151
Chip breakerHP
Chip breaker operationFinishing
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1102
Included angle80
Industry standard numberCPGT2151HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2151
Insert styleCPGT
Insert thickness in3/32
Iso codeCPGT060204HP
Iso insert codeCPGT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog number4050416
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0845
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
