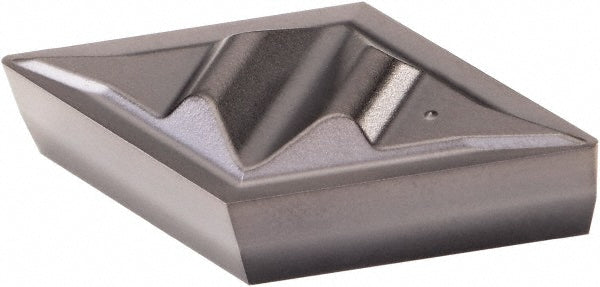

DCGR150404 Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050521

Kennametal

DCGR150404 Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050521

MFR# 4050521ISO/ANSI# DCGR150404Series Top Not

$30.52List $37.26 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 4050521 is a DCGR150404 carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6104
Insert materialCarbide
Insert size code431
Insert styleDPGR
Iso codeDCGR150404
Manufacturer gradeKCU25
Material gradeFine Grain
Maximum depth of cut0.2035
Msc manufacturer numberDPGR431
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle8
ShapeParallelogram
Side length0.6104
StandardsDPGR431; DCGR150404
Thickness in3/16
Width in1/2
