KNGX220404R25 Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050537

Kennametal

KNGX220404R25 Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050537

MFR# 4050537ISO/ANSI# KNGX220404R25Series Top Not

$39.88List $48.68 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

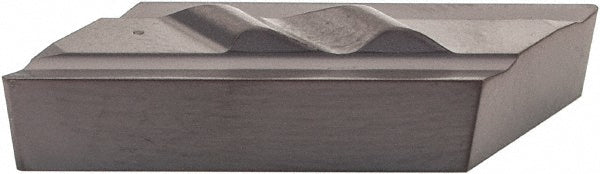

The Kennametal 4050537 is a KNGX220404R25 carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle in3/8
Insert handRight Hand
Insert height0.1875
Insert holding methodScrew
Insert length0.7330
Insert materialCarbide
Insert size code331N
Insert styleNPR
Iso codeKNGX220404R25
Manufacturer gradeKCU25
Material gradeFine Grain
Maximum depth of cut0.2443
Msc manufacturer numberNPR331N
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
ShapeParallelogram
Side length0.7330
StandardsNPR331N; KNGX220404R25
Thickness in3/16
Width in3/8
