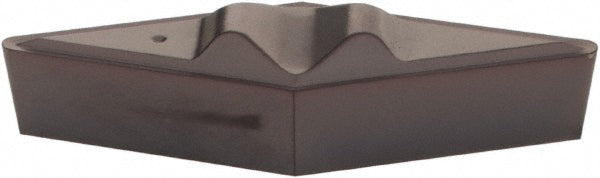

VCGR160408 Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050548

Kennametal

VCGR160408 Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050548

MFR# 4050548ISO/ANSI# VCGR160408Series Top Not

$43.19List $51.81 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 4050548 is a VCGR160408 carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0312
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6540
Insert materialCarbide
Insert size code332
Insert styleVPGR
Iso codeVCGR160408
Manufacturer gradeKCU25
Material gradeFine Grain
Maximum depth of cut0.2180
Msc manufacturer numberVPGR332
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle8
ShapeParallelogram
Side length0.6540
StandardsVPGR332; VCGR160408
Thickness in3/16
Width in3/8
